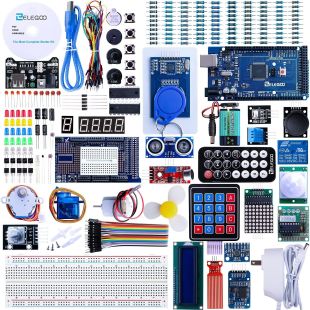

Here is the Elegoo "The Most Complete Starter Kit", all at once in one project, because why not. It's got everything in the Elegoo kit, practically all the parts were used; there are just a few resistors left over. The kit is made for one lesson at a time, so I had to add a few more breadboards and more wire. Plus a bunch of 3D printed parts to hold it all together. The project has no overall function. It's sort of a fidget toy; the knobs, buttons, and sensors make the LEDs, motors, and displays do stuff.

Fidget
The Most Complete Starter Kit

Schematic
Wiring Diagram

Design Documents

Schematic Diagrammega fidget schematic.pdf
Source CodeView   Download
3D Print Filesmega fidget 3D panels.zip

Build Pictures

Front
Bottom
