Spaceship Lamp Thing
Spaceship Lamp Thing

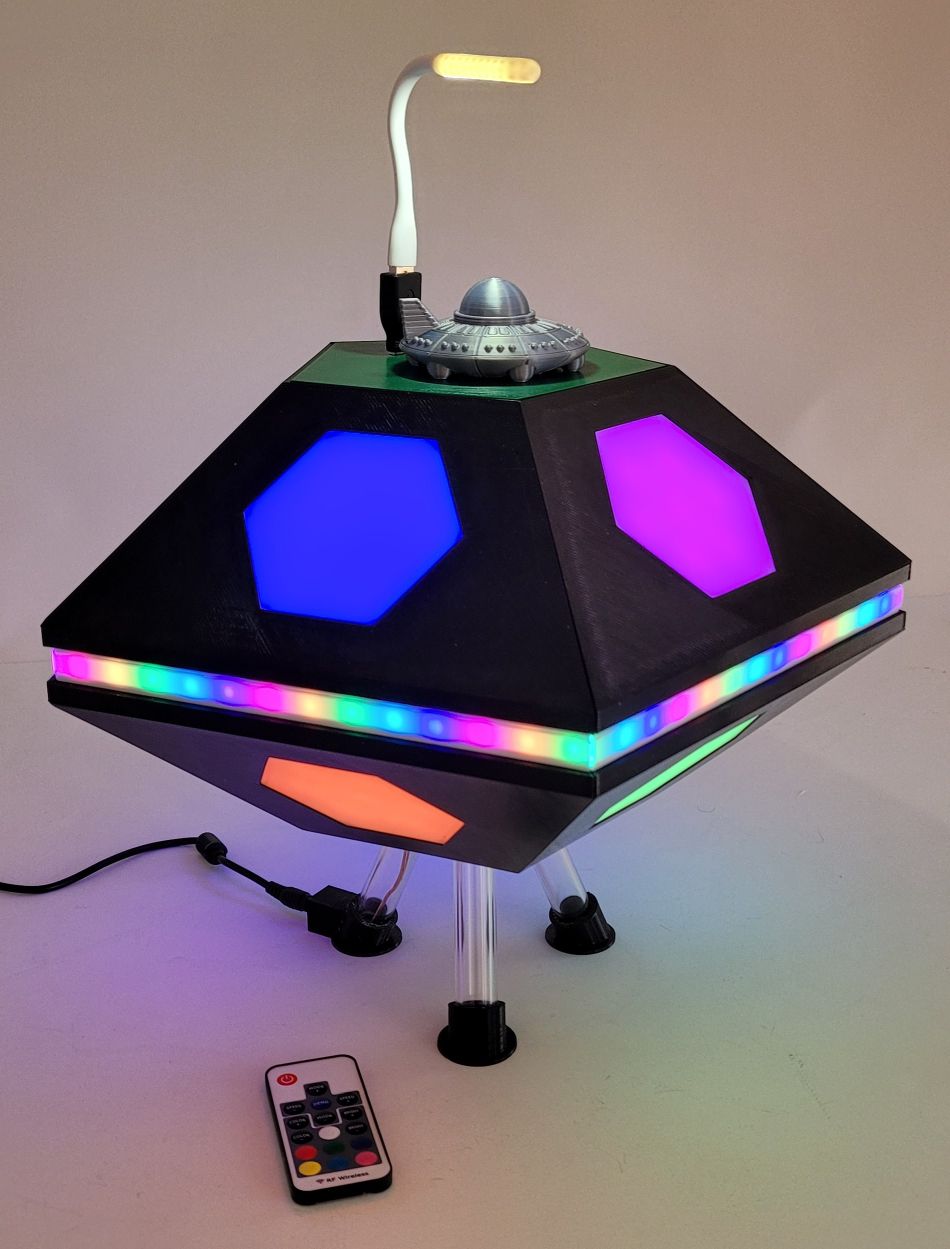

An illuminated dodecahedron spaceship landing pad lamp thing
with Arduino controlled lighting animations.
The lighting consists of ten hexagon panels, MeRGBWLife brand from Amazon, and a 63 pixel LED string around the waist. Each hexagonal panel contains 7 neopixels, for a total of 133 pixels. An RP2040 microprocessor runs the LED animations.
Features
- RF Remote Control
- Illuminated Landing Pad
- Qi Charger
- 10 LED panels
- 133 LEDs total
- Four display patterns
- Speed and brightness controls
Design Documents

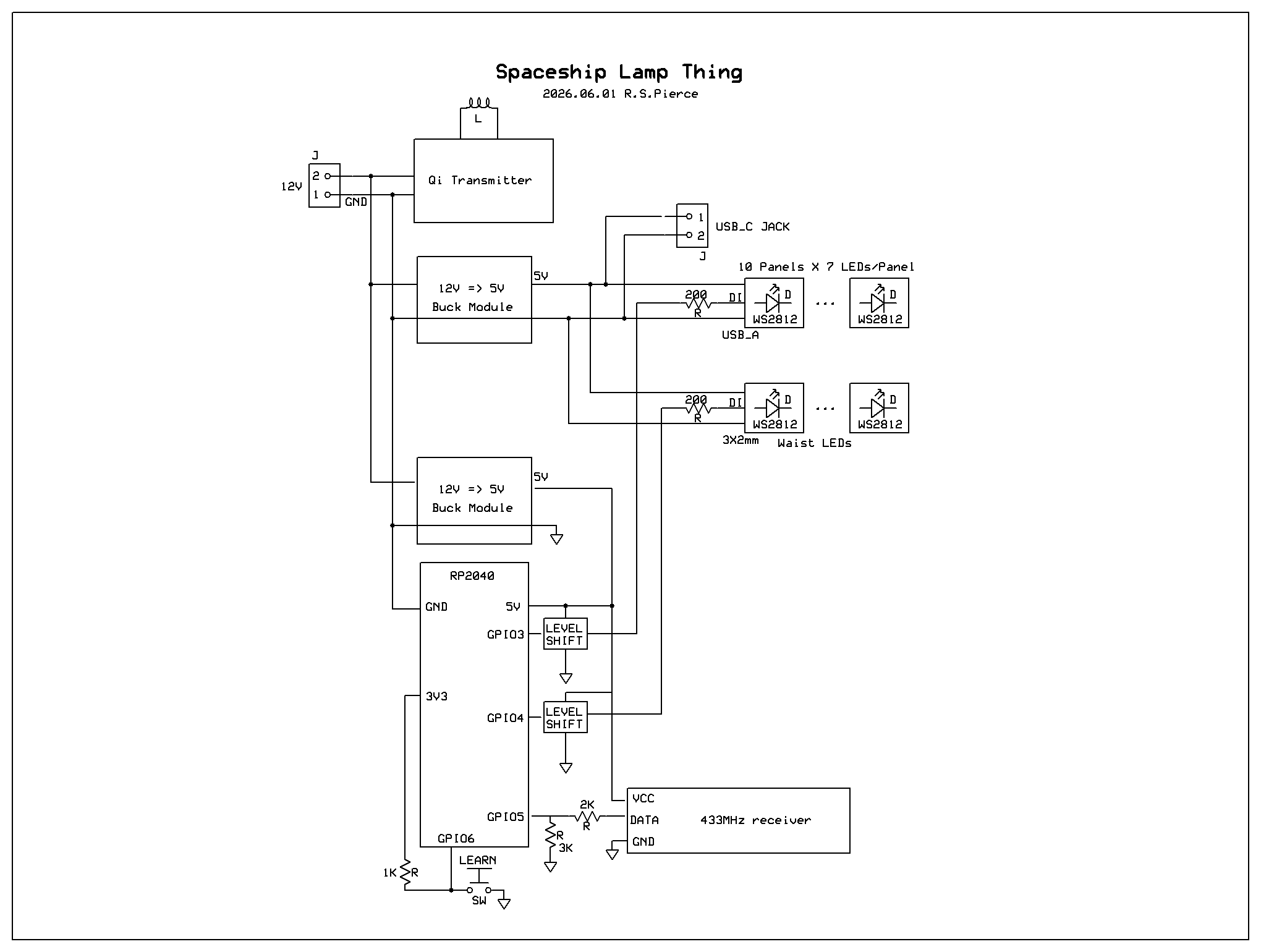

| Schematic Diagram | spaceship_schematic.bmp |
| 3D Print Files | spaceship_mechanical.zip |
| Arduino Code | Arduino.ino.txt |
The little silver spaceship is just a model from AliExpress.
Build Pictures

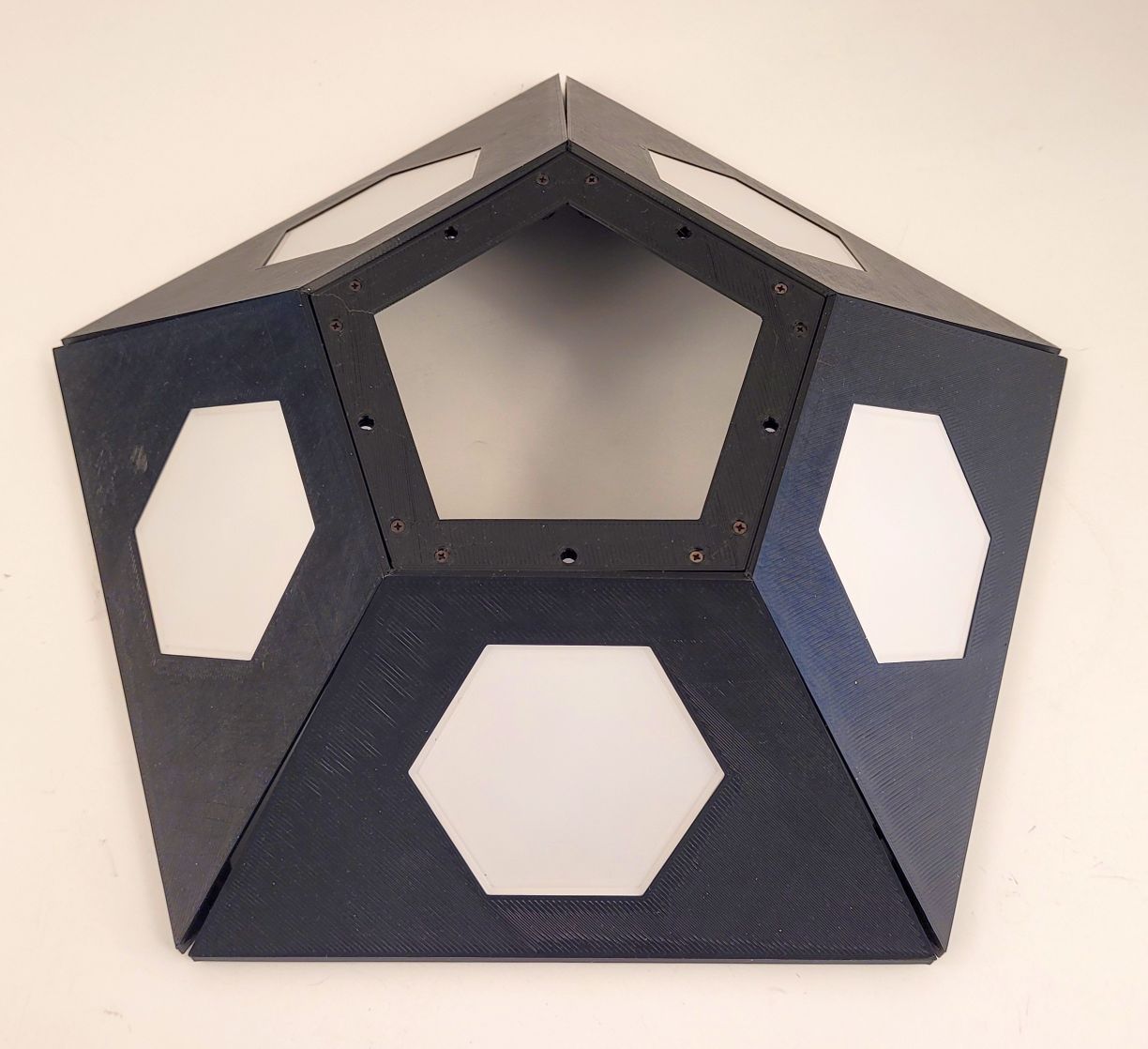

Shell Top

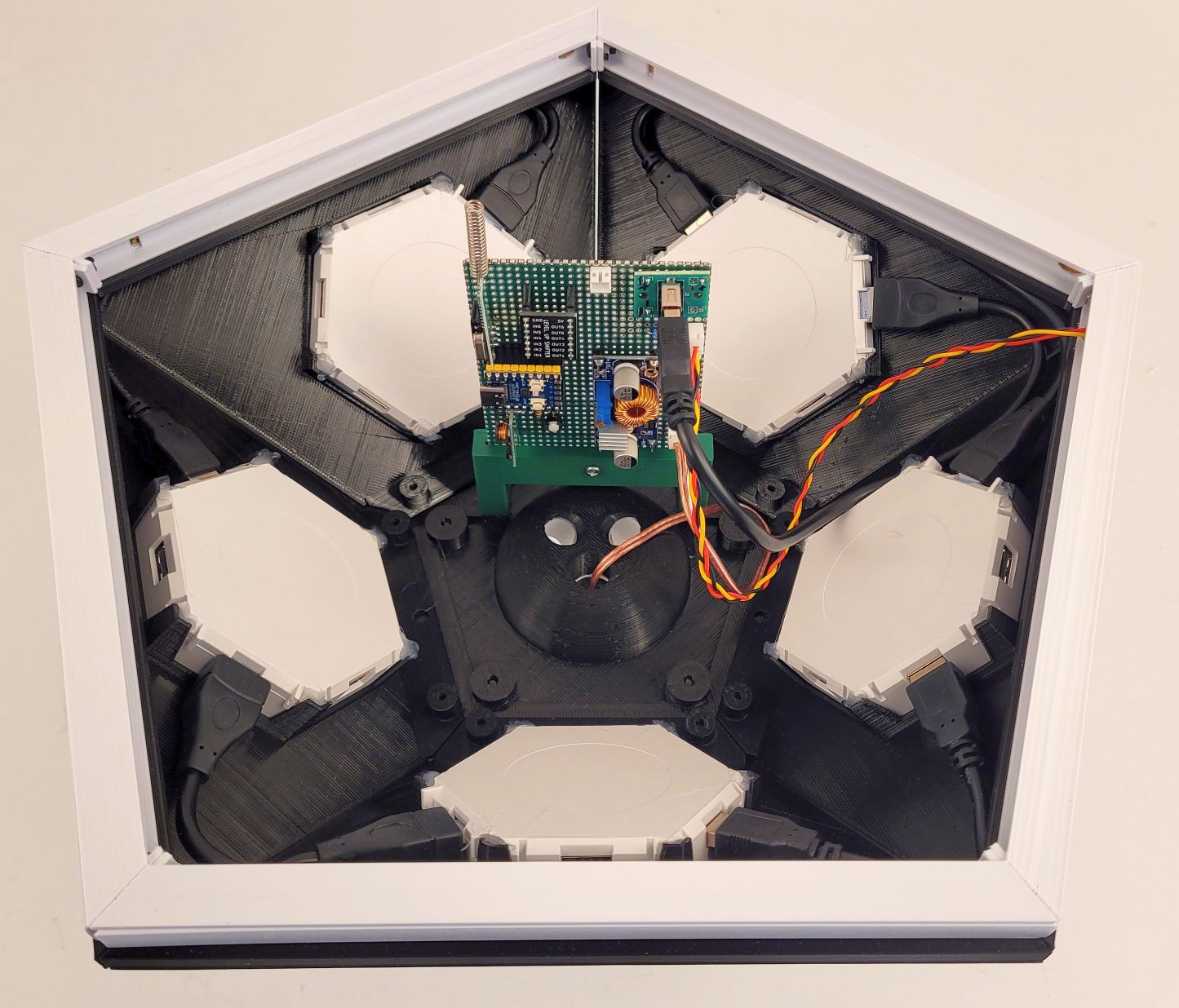

Shell Bottom

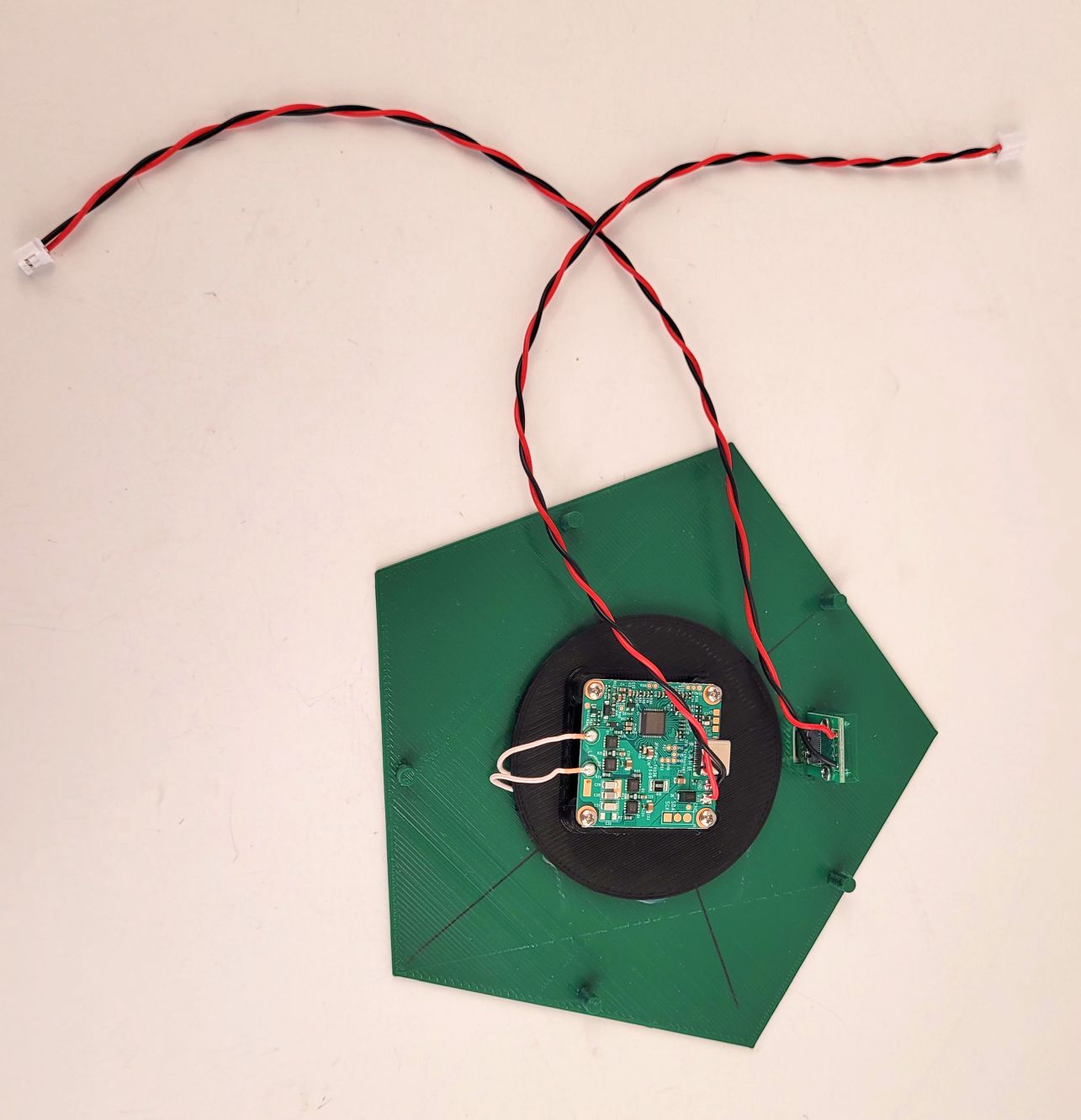

Top Panel

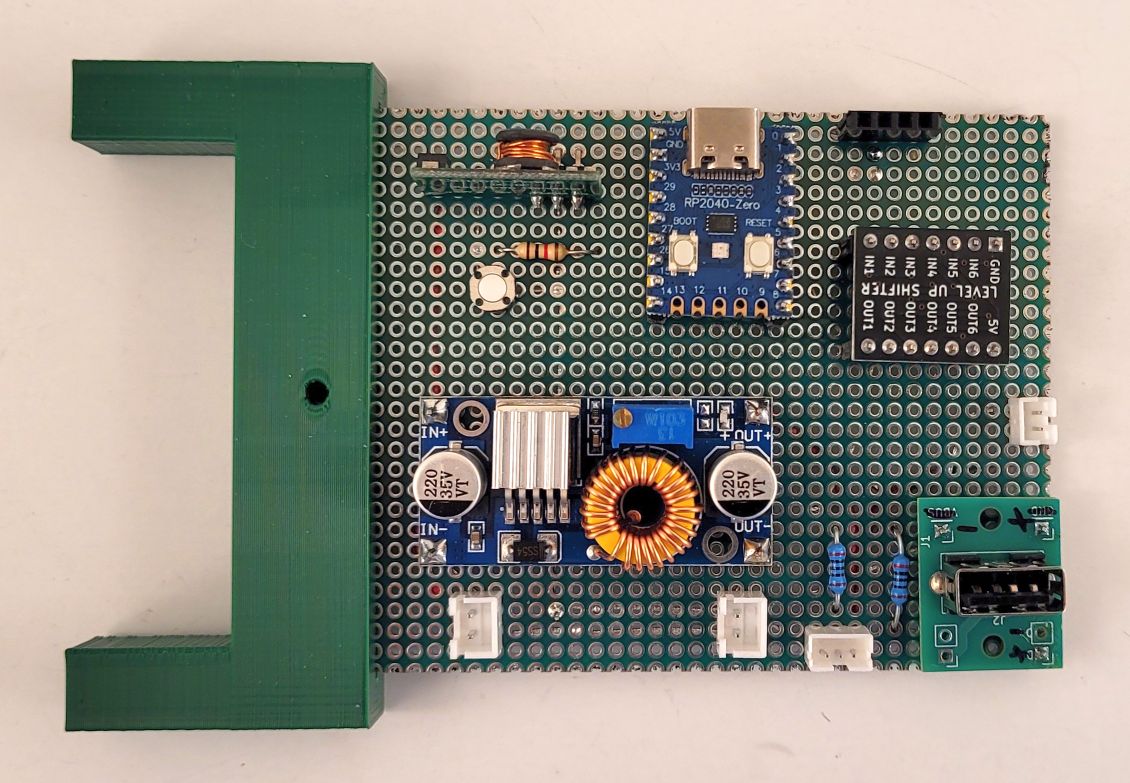

PCB Front

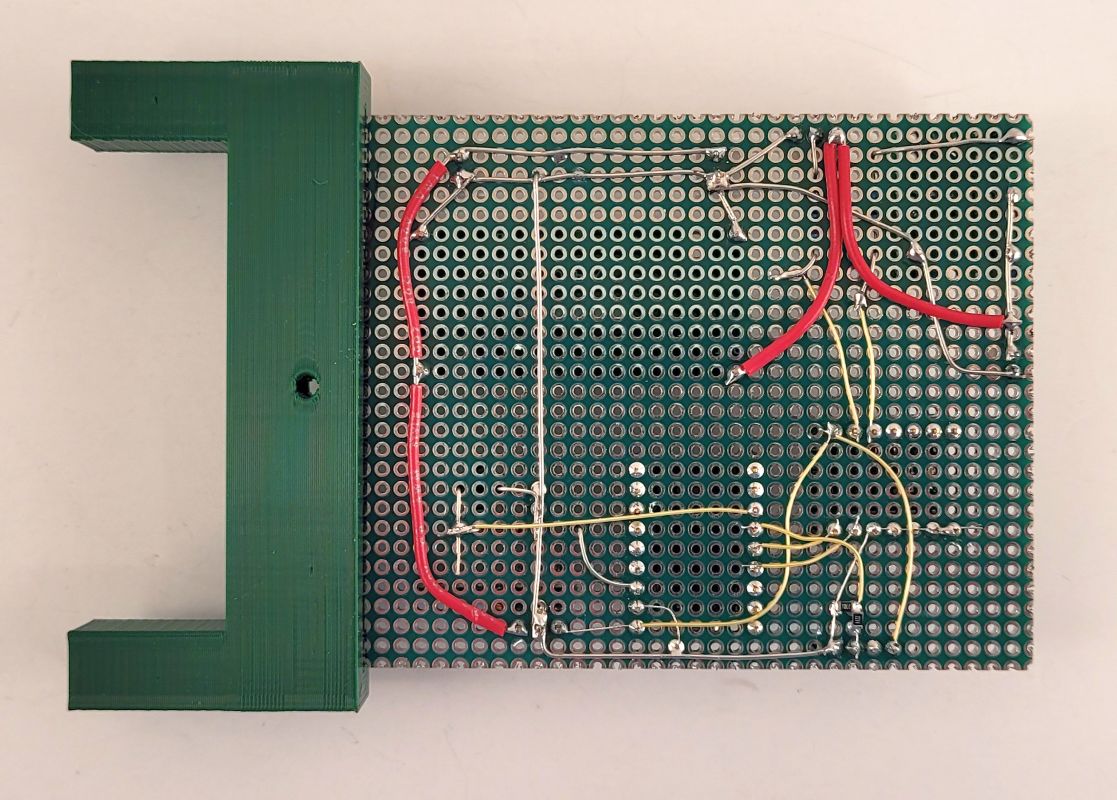

PCB Back
